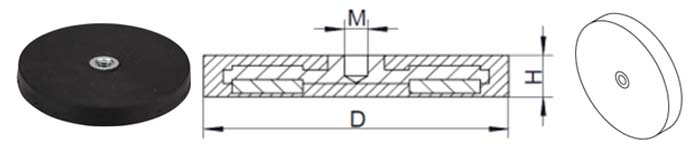

Neodymium Rubber coated magnet with internal thread
Model D H M Weight Pull force (mm) (mm) (g) (kg) RI22 22 6 M4 11 4 RI34 34 6 M4 20 6 RI43 43 6 M4 29 8 RI66 66 8 M6 100 20 RI88 88 8.5 M8 186 42 -
Model D h H M Weight Pull force (mm) (mm) (mm) (g) (kg) RE22 22 6 12.5 M4 14 5 RE34 34 6 16.5 M4 25 6 RE43 43 6 21 M6 32 8 RE66 66 8 23 M6 107 20 RE88 88 8.5 24.5 M8 193 42

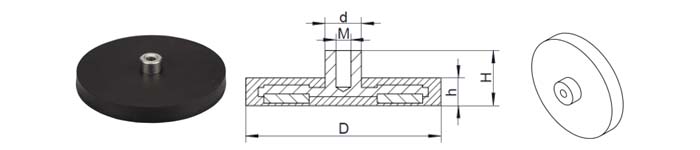

Neodymium Rubber coated magnet with external thread
-
Model D d h H M Weight Pull force (mm) (mm) (mm) (mm) (g) (kg) RS22 22 8 6 11.5 M4 12 5 RS34 34 8 6 14 M4 22 6 RS43 43 8 6 12 M4 33 8 RS66 66 12 8 14.2 M5 104 20 RS88 88 12 8.5 15.8 M8 200 42
Neodymium Rubber coated magnet with screwed bush
02 What’s Rubber Coated Magnet?
Rubber coated magnet is built in multiple neodymium magnet with strong magnetic power.
Covered with rubber in black color or white color. This rubber shell could help to increase the friction of the product and protect the magnets from the striking and the water. It can avoid damage and corrosion, and is suitable for indoor and outdoor applications.
The thread hole can be assembled with other parts, which can be used for lamp fixing and automotive film etc.
| Material | NdFeB Magnet |
| Place of Origin | Hangzhou, China |
| Brand | Wally Magnet |
| Certificate | ISO9001:2015, IATF16949:2016, RoHs |
| FOB Port | Ningbo, Shanghai |
| Terms of payment | T/T |
| Surface Coating | Black cover or white cover |
01 Rubber Coated Magnet Information
