| Material | NdFeB Magnet or Ferrite Magnet |
| Place of Origin | Hangzhou, China |
| Brand | Wally Magnet |
| Certificate | ISO9001:2015, IATF16949:2016, RoHs |
| FOB Port | Ningbo, Shanghai |
| Terms of payment | T/T |
| Surface Coating | Nickel coating, Zinc coating, powder coated in white, black or green color |
01 Pot Magnet Basic Information
02 What is Pot Magnet?
Pot Magnet is made of magnet(Neodymium magnet, Ferrite magnet) and steel cups. Magnet and steel cups will be glued together to create a holding force. It will be much stronger than the individual magnet. The steel cups usually will be coated with nickel, zinc or chrome. Pot magnet is also called round base magnet, hook magnet, cup magnet.
-
Item D Center Hole Magnet Hole Thickness Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G SNA16 0.630 16 0.138 3.5 0.256 6.5 0.205 5.2 6 13 7 SNA20 0.787 20 0.177 4.5 0.339 8.6 0.283 7.2 9 20 15 SNA25 0.984 25 0.217 5.5 0.417 10.6 0.303 7.7 19 42 24 SNA32 1.260 32 0.217 5.5 0.417 10.6 0.307 7.8 32 71 39 SNA36 1.417 36 0.256 6.5 0.472 12 0.299 7.6 41 90 50 SNA40 1.575 40 0.256 6.5 0.472 12 0.307 7.8 52 115 69 SNA42 1.654 42 0.256 6.5 0.472 12 0.346 8.8 61 134 77 SNA48 1.890 48 0.335 8.5 0.748 19 0.425 10.8 75 165 120 SNA60 2.362 60 0.335 8.5 0.748 19 0.591 15 115 254 243 SNA75 2.953 75 0.413 10.5 0.827 21 0.701 17.8 163 359 480 Item D Center Hole Magnet Hole Thickness Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G SFA30 1.181 30 0.150 3.81 0.413 10.5 0.180 4.57 5 11 16.5 SFA36 1.417 36 0.190 4.83 0.374 9.5 0.260 6.6 7 15 32 SFA50 1.969 50 0.190 4.83 0.866 22 0.291 7.39 16 35 66 SFA60 2.362 60 0.270 6.86 0.945 24 0.350 8.89 22 49 111.5 SFA70 2.756 70 0.280 7.11 1.000 25.4 0.368 9.35 36 79 154 SFA75 2.953 75 0.280 7.11 1.000 25.4 0.370 9.4 38 84 183 SFA80 3.150 80 0.280 7.11 1.260 32 0.415 10.54 45 99 241.5 SFA85 3.346 85 0.500 12.7 1.260 32 0.510 12.96 54 119 420 SFA90 3.543 90 0.500 12.7 1.772 45 0.490 12.44 95 209 684 Item D Center Hole Magnet Hole Thickness Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G LNA10 0.394 10 0.138 3.5 0.256 6.5 0.197 5 1 2 3 LNA12 0.472 12 0.138 3.5 0.256 6.5 0.197 5 1.5 3 4 LNA14 0.551 14 0.138 3.5 0.256 6.5 0.177 4.5 4 9 5 LNA16 0.630 16 0.138 3.5 0.256 6.5 0.205 5.2 6 13 7 LNA18 0.709 18 0.177 4.5 0.339 8.6 0.236 6 8 18 10 LNA20 0.787 20 0.177 4.5 0.339 8.6 0.283 7.2 9 20 15 LNA22 0.866 22 0.177 4.5 0.339 8.6 0.272 6.9 15 33 18 LNA25 0.984 25 0.217 5.5 0.417 10.6 0.303 7.7 19 42 24 LNA28 1.102 28 0.217 5.5 0.417 10.6 0.252 6.4 25 55 28 LNA30 1.181 30 0.217 5.5 0.417 10.6 0.252 6.4 29 64 32 LNA32 1.260 32 0.217 5.5 0.417 10.6 0.307 7.8 32 71 39 LNA34 1.339 34 0.217 5.5 0.417 10.6 0.287 7.3 35 77 45 LNA36 1.417 36 0.256 6.5 0.472 12 0.299 7.6 41 90 50 LNA38 1.496 38 0.256 6.5 0.472 12 0.291 7.4 47 104 60 LNA40 1.575 40 0.256 6.5 0.472 12 0.307 7.8 52 115 69 LNA42 1.654 42 0.256 6.5 0.472 12 0.346 8.8 61 134 77 LNA45 1.772 45 0.256 6.5 0.472 12 0.343 8.7 70 154 90 LNA48 1.890 48 0.335 8.5 0.748 19 0.425 10.8 75 165 120 LNA50 1.969 50 0.335 8.5 0.748 19 0.421 10.7 89 196 136 LNA55 2.165 55 0.335 8.5 0.748 19 0.472 12 102 225 192 LNA60 2.362 60 0.335 8.5 0.748 19 0.591 15 115 254 243 LNA65 2.559 65 0.335 8.5 0.748 19 0.587 14.9 130 287 338 LNA70 2.756 70 0.413 10.5 0.827 21 0.665 16.9 148 326 440 LNA75 2.953 75 0.413 10.5 0.827 21 0.701 17.8 163 359 480 LNA80 3.150 80 0.413 10.5 0.827 21 0.748 19 250 551 655 LNA90 3.543 90 0.413 10.5 0.827 21 0.709 18 340 750 822 LNA100 3.937 100 0.492 12.5 0.984 25 0.709 18 380 838 1030 LNA110 4.331 110 0.492 12.5 0.984 25 0.709 18 420 926 1226 LNA120 4.724 120 0.492 12.5 0.984 25 0.709 18 480 1058 1420 Item D Center Hole Magnet Hole Thickness Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G LFA16 0.630 16 0.138 3.5 0.256 6.5 0.177 4.5 1.4 3 4 LFA20 0.787 20 0.161 4.1 0.370 9.4 0.236 6 2.7 6 9 LFA25 0.984 25 0.217 5.5 0.453 11.5 0.276 7 3.6 8 17 LFA32 1.260 32 0.217 5.5 0.453 11.5 0.276 7 7.3 16 27 LFA40 1.575 40 0.217 5.5 0.453 11.5 0.315 8 9.2 20 52 -
Item D Center Hole Magnet Hole Thickness Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G SNB16 0.630 16 0.138 3.5 0.256 6.5 0.205 5.2 5 11 7 SNB20 0.787 20 0.177 4.5 0.315 8 0.283 7.2 8 18 13 SNB25 0.984 25 0.217 5.5 0.354 9 0.303 7.7 17 37 22 SNB32 1.260 32 0.217 5.5 0.354 9 0.307 7.8 30 66 38 SNB36 1.417 36 0.256 6.5 0.433 11 0.299 7.6 40 88 48 SNB40 1.575 40 0.256 6.5 0.433 11 0.307 7.8 50 110 69 SNB42 1.654 42 0.256 6.5 0.433 11 0.346 8.8 60 132 75 SNB48 1.890 48 0.335 8.5 0.591 15 0.425 10.8 72 159 114 SNB60 2.362 60 0.335 8.5 0.591 15 0.591 15 110 243 235 SNB75 2.953 75 0.413 10.5 0.709 18 0.701 17.8 155 342 460 Item D Center Hole Magnet Hole Thickness Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G SFB20 1.220 31 0.156 3.96 0.256 6.5 0.190 4.83 5 11 16 SFB30 1.260 32 0.150 3.81 0.413 10.5 0.180 4.57 5 11 16.5 SFB36 1.417 36 0.190 4.83 0.374 9.5 0.260 6.6 7 15 32 SFB50 2.047 52 0.190 4.83 0.866 22 0.291 7.39 16 35 66 SFB60 2.362 60 0.270 6.86 0.945 24 0.350 8.89 22 49 111.5 SFB70 2.638 67 0.280 7.11 1.000 25.4 0.368 9.35 36 79 154 SFB75 2.953 75 0.280 7.11 1.000 25.4 0.370 9.4 38 84 183 SFB80 3.150 80 0.280 7.11 1.260 32 0.415 10.54 45 99 241.5 SFB85 3.740 95 0.500 12.7 1.260 32 0.510 12.96 54 119 420 SFB90 4.921 125 0.500 12.7 1.772 45 0.490 12.44 95 209 684 Item D Center Hole Magnet Hole Thickness Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G LNB10 0.394 10 0.138 3.5 0.256 6.5 0.197 5 1 2 2 LNB12 0.472 12 0.138 3.5 0.256 6.5 0.197 5 1.5 3 4 LNB14 0.551 14 0.138 3.5 0.256 6.5 0.177 4.5 3 7 5 LNB16 0.630 16 0.138 3.5 0.256 6.5 0.205 5.2 5 11 7 LNB18 0.709 18 0.177 4.5 0.315 8 0.236 6 6 13 10 LNB20 0.787 20 0.177 4.5 0.315 8 0.283 7.2 8 18 13 LNB22 0.866 22 0.177 4.5 0.315 8 0.272 6.9 16 35 17 LNB25 0.984 25 0.217 5.5 0.354 9 0.303 7.7 18 40 22 LNB28 1.102 28 0.217 5.5 0.354 9 0.252 6.4 23 51 27 LNB30 1.181 30 0.217 5.5 0.354 9 0.252 6.4 27 60 32 LNB32 1.260 32 0.217 5.5 0.354 9 0.307 7.8 30 66 38 LNB34 1.339 34 0.217 5.5 0.354 9 0.287 7.3 33 73 44 LNB36 1.417 36 0.256 6.5 0.433 11 0.299 7.6 40 88 48 LNB38 1.496 38 0.256 6.5 0.433 11 0.291 7.4 44 97 59 LNB40 1.575 40 0.256 6.5 0.433 11 0.307 7.8 50 110 69 LNB42 1.654 42 0.256 6.5 0.433 11 0.346 8.8 60 132 75 LNB45 1.772 45 0.256 6.5 0.433 11 0.343 8.7 69 152 89 LNB48 1.890 48 0.335 8.5 0.591 15 0.425 10.8 72 159 114 LNB50 1.969 50 0.335 8.5 0.591 15 0.421 10.7 81 179 134 LNB55 2.165 55 0.335 8.5 0.591 15 0.472 12 93 205 189 LNB60 2.362 60 0.335 8.5 0.591 15 0.591 15 110 243 235 LNB65 2.559 65 0.335 8.5 0.591 15 0.587 14.9 122 269 333 LNB70 2.756 70 0.413 10.5 0.709 18 0.665 16.9 138 304 429 LNB75 2.953 75 0.413 10.5 0.709 18 0.701 17.8 155 342 460 LNB80 3.150 80 0.413 10.5 0.709 18 0.748 19 250 551 641 LNB90 3.543 90 0.413 10.5 0.906 23 0.709 18 340 750 799 LNB100 3.937 100 0.492 12.5 0.984 25 0.709 18 380 838 1016 LNB110 4.331 110 0.492 12.5 0.984 25 0.709 18 420 926 1212 LNB120 4.724 120 0.492 12.5 0.984 25 0.709 18 480 1058 1380 -

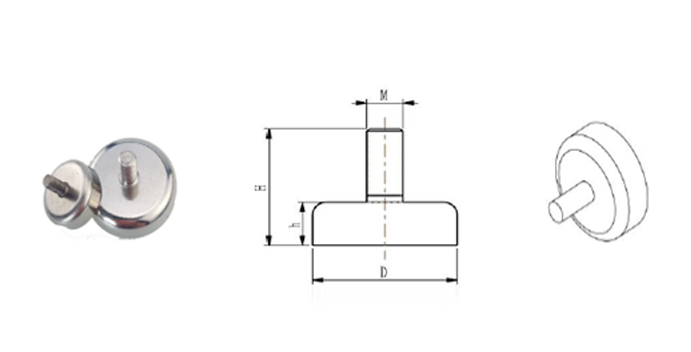

Item D M H h Pull force Weight Inch MM Inch MM Inch MM KG Lbs G SNC10 0.394 10 M3 0.472 12 0.197 5 1.5 3 4 SNC12 0.472 12 M3 0.472 12 0.197 5 2 4 5 SNC16 0.630 16 M4 0.551 14 0.205 5.2 8 18 9 SNC20 0.787 20 M4 0.630 16 0.283 7.2 12 26 16 SNC25 0.984 25 M5 0.669 17 0.303 7.7 22 49 26 SNC32 1.260 32 M6 0.709 18 0.307 7.8 34 75 43 SNC36 1.417 36 M6 0.693 17.6 0.299 7.6 41 90 54 SNC40 1.575 40 M6 0.697 17.7 0.307 7.8 51 112 75 SNC42 1.654 42 M6 0.736 18.7 0.346 8.8 66 146 83 SNC48 1.890 48 M8 0.945 24 0.425 10.8 78 172 130 SNC60 2.362 60 M8 1.240 31.5 0.591 15 120 265 256 SNC75 2.953 75 M10 1.378 35 0.701 17.8 168 370 510 Item D M H h Pull force Weight Inch MM Inch MM Inch MM KG Lbs G LNC8 0.315 8 M3 0.453 11.5 0.185 4.7 1 2 3 LNC10 0.394 10 M3 0.563 14.3 0.197 5 1.5 3 4 LNC12 0.472 12 M3 0.551 14 0.197 5 2 4 5 LNC14 0.551 14 M4 0.551 14 0.177 4.5 5 11 7 LNC16 0.630 16 M4 0.551 14 0.205 5.2 8 18 9 LNC18 0.709 18 M4 0.551 14 0.236 6 10 22 12 LNC20 0.787 20 M4 0.630 16 0.283 7.2 12 26 16 LNC22 0.866 22 M4 0.638 16.2 0.272 6.9 18 40 20 LNC25 0.984 25 M5 0.669 17 0.303 7.7 22 49 26 LNC28 1.102 28 M5 0.661 16.8 0.252 6.4 26 57 31 LNC30 1.181 30 M5 0.661 16.8 0.252 6.4 29 64 35 LNC32 1.260 32 M6 0.709 18 0.307 7.8 34 75 43 LNC34 1.339 34 M6 0.697 17.7 0.287 7.3 37 82 50 LNC36 1.417 36 M6 0.693 17.6 0.299 7.6 41 90 54 LNC38 1.496 38 M6 0.677 17.2 0.291 7.4 46 101 65 LNC40 1.575 40 M6 0.697 17.7 0.307 7.8 51 112 75 LNC42 1.654 42 M6 0.736 18.7 0.346 8.8 66 146 83 LNC45 1.772 45 M8 0.862 21.9 0.343 8.7 75 165 103 LNC48 1.890 48 M8 0.945 24 0.425 10.8 78 172 130 LNC50 1.969 50 M8 1.008 25.6 0.421 10.7 91 201 151 LNC55 2.165 55 M8 1.150 29.2 0.472 12 102 225 209 LNC60 2.362 60 M8 1.240 31.5 0.591 15 120 265 256 LNC65 2.559 65 M10 1.299 33 0.587 14.9 137 302 362 LNC70 2.756 70 M10 1.339 34 0.665 16.9 153 337 467 LNC75 2.953 75 M10 1.378 35 0.701 17.8 178 392 510 LNC80 3.150 80 M10 1.425 36.2 0.748 19 250 551 681 LNC90 3.543 90 M10 1.386 35.2 0.709 18 340 750 841 LNC100 3.937 100 M12 1.386 35.2 0.709 18 380 838 1070 LNC110 4.331 110 M12 1.386 35.2 0.709 18 420 926 1291 LNC120 4.724 120 M12 1.575 40 0.709 18 480 1058 1420 -
Item D M H h Pull force Weight Inch MM Inch MM Inch MM KG Lbs G SND10 0.394 10 M3 0.496 12.6 0.197 5 1.5 3 4 SND12 0.472 12 M3 0.496 12.6 0.197 5 2 4 5 SND16 0.630 16 M4 0.531 13.5 0.205 5.2 8 18 9 SND20 0.787 20 M4 0.591 15 0.283 7.2 12 26 17 SND25 0.984 25 M5 0.669 17 0.303 7.7 22 49 28 SND32 1.260 32 M6 0.709 18 0.307 7.8 34 75 45 SND36 1.417 36 M6 0.728 18.5 0.299 7.6 41 90 55 SND40 1.575 40 M6 0.740 18.8 0.307 7.8 51 112 78 SND42 1.654 42 M6 0.740 18.8 0.346 8.8 66 146 84 SND48 1.890 48 M8 0.945 24 0.425 10.8 78 172 130 SND60 2.362 60 M8 1.102 28 0.591 15 120 265 263 SND75 2.953 75 M10 1.378 35 0.701 17.8 168 370 515 c D M H h Pull force Weight Inch MM Inch MM Inch MM KG Lbs G SFD10 0.394 10 M3 0.453 11.5 0.177 4.5 0.4 1 3 SFD12 0.472 12 M3 0.453 11.5 0.177 4.5 1 2 4 SFD16 0.630 16 M3 0.453 11.5 0.177 4.5 1.8 4 7 SFD20 0.787 20 M3 0.512 13 0.236 6 3 7 14 SFD25 0.984 25 M4 0.591 15 0.276 7 4 9 21 SFD32 1.260 32 M4 0.591 15 0.276 7 8 18 33 SFD36 1.417 36 M4 0.630 16 0.303 7.7 10 22 44 SFD40 1.575 40 M5 0.709 18 0.315 8 12 26 59 SFD48 1.890 48 M4 0.669 17 0.354 9 18 40 85 SFD50 1.969 50 M6 0.866 22 0.394 10 22 49 111 SFD58 2.283 58 M6 0.886 22.5 0.413 10.5 28 62 153 SFD65 2.559 65 M8 1.181 30 0.551 14 35 77 247 SFD80 3.150 80 M10 1.339 34 0.709 18 61 134 498 SFD100 3.937 100 M12 1.693 43 0.866 22 92 203 956 Item D M H h Pull force Weight Inch MM Inch MM Inch MM KG Lbs G LND8 0.315 8 M3 0.453 11.5 0.185 4.7 1 2 3 LND10 0.394 10 M3 0.492 12.5 0.197 5 1.5 3 4 LND12 0.4762 12 M3 0.492 12.5 0.197 5 2 4 5 LND14 0.551 14 M4 0.492 12.5 0.177 4.5 5 11 7 LND16 0.630 16 M4 0.531 13.5 0.205 5.2 8 18 9 LND18 0.709 18 M4 0.543 13.8 0.236 6 10 22 13 LND20 0.787 20 M4 0.591 15 0.283 7.2 12 26 17 LND22 0.866 22 M4 0.638 16.2 0.272 6.9 18 40 21 LND25 0.984 25 M5 0.669 17 0.303 7.7 22 49 28 LND28 1.102 28 M5 0.618 15.7 0.252 6.4 26 57 31 LND30 1.181 30 M5 0.654 16.6 0.252 6.4 29 64 36 LND32 1.260 32 M6 0.709 18 0.307 7.8 34 75 45 LND34 1.339 34 M6 0.689 17.5 0.287 7.3 37 82 52 LND36 1.417 36 M6 0.728 18.5 0.299 7.6 41 90 55 LND38 1.496 38 M6 0.720 18.3 0.291 7.4 46 101 68 LND40 1.575 40 M6 0.740 18.8 0.307 7.8 51 112 78 LND42 1.654 42 M6 0.740 18.8 0.346 8.8 66 146 84 LND45 1.772 45 M8 0.772 19.6 0.343 8.7 75 165 103 LND48 1.890 48 M8 0.945 24 0.425 10.8 78 172 130 LND50 1.969 50 M8 1.008 25.6 0.421 10.7 91 201 153 LND55 2.165 55 M8 1.150 29.2 0.472 12 102 225 211 LND60 2.362 60 M8 1.102 28 0.591 15 120 265 263 LND65 2.559 65 M8 1.268 32.2 0.587 14.9 137 302 358 LND70 2.756 70 M10 1.346 34.2 0.665 16.9 153 337 481 LND75 2.953 75 M10 1.378 35 0.701 17.8 178 392 515 LND80 3.150 80 M10 1.425 36.2 0.748 19 250 551 694 LND90 3.543 90 M10 1.386 35.2 0.709 18 340 750 854 LND100 3.937 100 M12 1.386 35.2 0.709 18 380 838 1088 LND110 4.331 110 M12 1.386 35.2 0.709 18 420 926 1309 LND120 4.724 120 M12 1.575 40 0.709 18 480 1058 1440 -

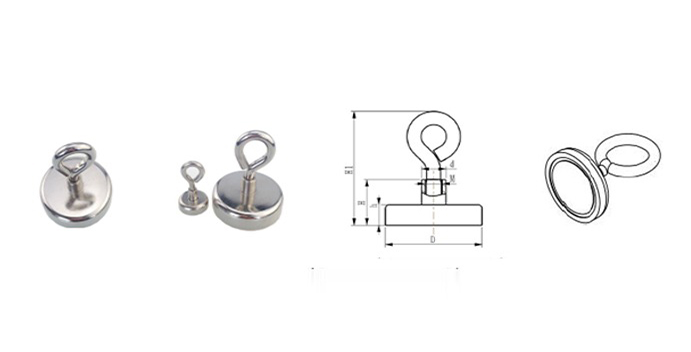

Item D D1 M h H H1 Pull force Weight Inch MM Inch MM Inch MM Inch MM Inch MM KG Lbs G SNE10 0.394 10 0.236 6 M3 0.197 5 0.496 12.6 1.240 31.5 1.5 3 5 SNE12 0.472 12 0.236 6 M4 0.197 5 0.496 12.6 1.240 31.5 2 4 7 SNE16 0.630 16 0.256 6.5 M4 0.205 5.2 0.531 13.5 1.406 35.7 8 18 12 SNE20 0.787 20 0.256 6.5 M4 0.283 7.2 0.591 15 1.488 37.8 12 26 21 SNE25 0.984 25 0.295 7.5 M5 0.303 7.7 0.669 17 1.768 44.9 22 49 33 SNE32 1.260 32 0.394 10 M6 0.307 7.8 0.709 18 1.882 47.8 34 75 54 SNE36 1.417 36 0.394 10 M6 0.299 7.6 0.728 18.5 1.961 49.8 41 90 64 SNE40 1.575 40 0.394 10 M6 0.307 7.8 0.740 18.8 1.972 50.1 51 112 87 SNE42 1.654 42 0.394 10 M6 0.346 8.8 0.740 18.8 1.969 50 66 146 93 SNE48 1.890 48 0.472 12 M8 0.425 10.8 0.945 24 2.402 61 78 172 150 SNE60 2.362 60 0.472 12 M8 0.591 15 1.102 28 2.598 66 120 265 283 SNE75 2.953 75 0.669 17 M10 0.701 17.8 1.378 35 3.307 84 168 370 555 Item D D1 M h H Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G SFE16 0.630 16 0.236 6 M3 0.177 4.5 0.453 11.5 1 2 7 SFE20 0.787 20 0.315 8 M4 0.236 6 0.512 13 3 7 14 SFE25 0.984 25 0.315 8 M4 0.276 7 0.591 15 4 9 21 SFE32 1.260 32 0.315 8 M4 0.276 7 0.591 15 8 18 33 SFE36 1.417 36 0.315 8 M4 0.303 7.7 0.630 16 10 22 44 SFE40 1.575 40 0.315 8 M4 0.315 8 0.650 16.5 12 26 56 SFE47 1.850 47 0.315 8 M4 0.354 9 0.669 17 18 40 85 SFE50 1.969 50 0.315 8 M4 0.394 10 0.728 18.5 22 49 107 SFE57 2.244 57 0.315 8 M4 0.413 10.5 0.728 18.5 28 62 149 SFE63 2.480 63 0.315 8 M4 0.551 14 1.181 30 35 77 214 SFE80 3.150 80 0.472 12 M6 0.709 18 1.122 28.5 61 134 485 Item D D1 M h H H1 Pull force Weight Inch MM Inch MM Inch MM Inch MM Inch MM KG Lbs G LNE8 0.315 8 0.177 4.5 M3 0.185 4.7 0.453 11.5 1.319 33.5 1 2 4 LNE10 0.394 10 0.236 6 M3 0.197 5 0.492 12.5 1.358 34.5 1.5 3 5 LNE12 0.472 12 0.236 6 M3 0.197 5 0.492 12.5 1.358 34.5 3 7 7 LNE14 0.551 14 0.256 6.5 M4 0.177 4.5 0.492 12.5 1.378 35 5 11 10 LNE16 0.630 16 0.256 6.5 M4 0.205 5.2 0.531 13.5 1.406 35.7 8 18 12 LNE18 0.709 18 0.256 6.5 M4 0.236 6 0.543 13.8 1.429 36.3 10 22 16 LNE20 0.787 20 0.256 6.5 M4 0.283 7.2 0.591 15 1.488 37.8 12 26 21 LNE22 0.866 22 0.256 6.5 M4 0.272 6.9 0.638 16.2 1.524 38.7 18 40 24 LNE25 0.984 25 0.295 7.5 M5 0.303 7.7 0.669 17 1.768 44.9 22 49 33 LNE28 1.102 28 0.295 7.5 M5 0.252 6.4 0.618 15.7 1.701 43.2 26 57 36 LNE30 1.181 30 0.295 7.5 M5 0.252 6.4 0.654 16.6 1.736 44.1 29 64 41 LNE32 1.260 32 0.394 10 M6 0.307 7.8 0.709 18 1.882 47.8 34 75 54 LNE34 1.339 34 0.394 10 M6 0.287 7.3 0.689 17.5 1.921 48.8 37 82 61 LNE36 1.417 36 0.394 10 M6 0.299 7.6 0.728 18.5 1.961 49.8 41 90 64 LNE38 1.496 38 0.394 10 M6 0.291 7.4 0.720 18.3 1.953 49.6 46 101 77 LNE40 1.575 40 0.394 10 M6 0.307 7.8 0.740 18.8 1.972 50.1 51 112 87 LNE42 1.654 42 0.394 10 M6 0.346 8.8 0.740 18.8 1.969 50 66 146 93 LNE45 1.772 45 0.472 12 M8 0.343 8.7 0.772 19.6 2.228 56.6 75 165 123 LNE48 1.890 48 0.472 12 M8 0.425 10.8 0.945 24 2.402 61 78 172 150 LNE50 1.969 50 0.472 12 M8 0.421 10.7 1.008 25.6 2.465 62.6 91 201 173 LNE55 2.165 55 0.472 12 M8 0.472 12 1.150 29.2 2.606 66.2 102 225 231 LNE60 2.362 60 0.472 12 M8 0.591 15 1.102 28 2.598 66 120 265 283 LNE65 2.559 65 0.472 12 M8 0.587 14.9 1.268 32.2 2.724 69.2 137 302 378 LNE70 2.756 70 0.669 17 M10 0.665 16.9 1.346 34.2 3.276 83.2 153 337 531 LNE75 2.953 75 0.669 17 M10 0.701 17.8 1.378 35 3.307 84 178 392 555 LNE80 3.150 80 0.669 17 M10 0.748 19 1.425 36.2 3.354 85.2 250 551 744 -
Item D d M h H H1 Pull force Weight Inch MM Inch MM Inch MM Inch MM Inch MM KG Lbs G SNF10 0.394 10 0.236 6 M3 0.197 5 0.496 12.6 1.240 31.5 1.5 3 5 SNF12 0.394 10 0.236 6 M3 0.197 5 0.496 12.6 1.240 31.5 2 4 7 SNF16 0.630 16 0.256 6.5 M4 0.205 5.2 0.531 13.5 1.406 35.7 8 18 12 SNF20 0.787 20 0.256 6.5 M4 0.283 7.2 0.591 15 1.488 37.8 12 26 21 SNF25 0.984 25 0.295 7.5 M5 0.303 7.7 0.669 17 1.768 44.9 22 49 33 SNF32 1.260 32 0.394 10 M6 0.307 7.8 0.709 18 1.882 47.8 34 75 54 SNF36 1.417 36 0.394 10 M6 0.299 7.6 0.728 18.5 1.961 49.8 41 90 64 SNF40 1.575 40 0.394 10 M6 0.307 7.8 0.740 18.8 1.972 50.1 51 112 87 SNF42 1.654 42 0.394 10 M6 0.346 8.8 0.740 18.8 1.969 50 66 146 93 SNF48 1.890 48 0.472 12 M8 0.425 10.8 0.945 24 2.402 61 78 172 150 SNF60 2.362 60 0.472 12 M8 0.591 15 1.102 28 2.598 66 120 265 283 SNF75 2.953 75 0.669 17 M10 0.701 17.8 1.378 35 3.307 84 168 370 555 Item D D1 M h H H1 Pull force Weight Inch MM Inch MM Inch MM Inch MM Inch MM KG Lbs G LNF8 0.315 8 0.177 4.5 M3 0.185 4.7 0.453 11.5 1.319 33.5 1 2 4 LNF10 0.394 10 0.236 6 M3 0.197 5 0.492 12.5 1.358 34.5 1.5 3 5 LNF12 0.472 12 0.236 6 M3 0.197 5 0.492 12.5 1.358 34.5 3 7 7 LNF14 0.551 14 0.256 6.5 M4 0.177 4.5 0.492 12.5 1.378 35 5 11 10 LNF16 0.630 16 0.256 6.5 M4 0.205 5.2 0.531 13.5 1.406 35.7 8 18 12 LNF18 0.709 18 0.256 6.5 M4 0.236 6 0.543 13.8 1.429 36.3 10 22 16 LNF20 0.787 20 0.256 6.5 M4 0.283 7.2 0.591 15 1.488 37.8 12 26 21 LNF22 0.866 22 0.256 6.5 M4 0.272 6.9 0.638 16.2 1.524 38.7 18 40 24 LNF25 0.984 25 0.295 7.5 M5 0.303 7.7 0.669 17 1.768 44.9 22 49 33 LNF28 1.102 28 0.295 7.5 M5 0.252 6.4 0.618 15.7 1.701 43.2 26 57 36 LNF30 1.181 30 0.295 7.5 M5 0.252 6.4 0.654 16.6 1.736 44.1 29 64 41 LNF32 1.260 32 0.394 10 M6 0.307 7.8 0.709 18 1.882 47.8 34 75 54 LNF34 1.339 34 0.394 10 M6 0.287 7.3 0.689 17.5 1.921 48.8 37 82 61 LNF36 1.417 36 0.394 10 M6 0.299 7.6 0.728 18.5 1.961 49.8 41 90 64 LNF38 1.496 38 0.394 10 M6 0.291 7.4 0.720 18.3 1.953 49.6 46 101 77 LNF40 1.575 40 0.394 10 M6 0.307 7.8 0.740 18.8 1.972 50.1 51 112 87 LNF42 1.654 42 0.394 10 M6 0.346 8.8 0.740 18.8 1.969 50 66 146 93 LNF45 1.772 45 0.472 12 M8 0.343 8.7 0.772 19.6 2.228 56.6 75 165 123 LNF48 1.890 48 0.472 12 M8 0.425 10.8 0.945 24 2.402 61 78 172 150 LNF50 1.969 50 0.472 12 M8 0.421 10.7 1.008 25.6 2.465 62.6 91 201 173 LNF55 2.165 55 0.472 12 M8 0.472 12 1.150 29.2 2.606 66.2 102 225 231 LNF60 2.362 60 0.472 12 M8 0.591 15 1.102 28 2.598 66 120 265 283 LNF65 2.559 65 0.472 12 M8 0.587 14.9 1.268 32.2 2.724 69.2 137 302 378 LNF70 2.756 70 0.669 17 M10 0.665 16.9 1.346 34.2 3.276 83.2 153 337 531 LNF75 2.953 75 0.669 17 M10 0.701 17.8 1.378 35 3.307 84 178 392 555 LNF80 3.150 80 0.669 17 M10 0.748 19 1.425 36.2 3.354 85.2 250 551 744 LNF90 3.543 90 0.669 17 M10 0.709 18 1.386 35.2 3.354 85.2 340 750 904 LNF100 3.937 100 0.866 22 M12 0.709 18 1.386 35.2 3.417 86.8 380 838 1168 LNF110 4.331 110 0.866 22 M12 0.709 18 1.386 35.2 3.417 86.8 420 926 1389 LNF120 4.724 120 0.906 23 M12 0.709 18 1.575 40 3.701 94 480 1058 1520 Item D d M h H H1 Pull force Weight Inch MM Inch MM Inch MM Inch MM Inch MM KG Lbs G SFF25 0.984 25 0.256 6.5 M4 0.276 7 0.614 15.6 1.520 38.6 4.5 10 24.9 SFF32 1.260 32 0.256 6.5 M4 0.276 7 0.591 15 1.496 38 8.5 19 33.4 SFF36 1.417 36 0.256 6.5 M4 0.315 8 0.630 16 1.535 39 11 24 47.4 SFF40 1.575 40 0.295 7.5 M5 0.315 8 0.709 18 1.811 46 13 29 58.2 SFF48 1.890 48 0.295 7.5 M5 0.354 9 0.728 18.5 1.831 46.5 18 40 88.1 SFF50 1.969 50 0.295 7.5 M5 0.394 10 0.787 20 1.890 48 23 51 109.2 SFF57 2.244 57 0.295 7.5 M5 0.413 10.5 0.787 20 1.890 48 29 64 147.5 SFF63 2.480 63 0.394 10 M6 0.551 14 1.004 25.5 2.236 56.8 36 79 219.6 SFF80 3.150 80 0.394 10 M8 0.709 18 1.201 30.5 2.657 67.5 62 137 429.5 -

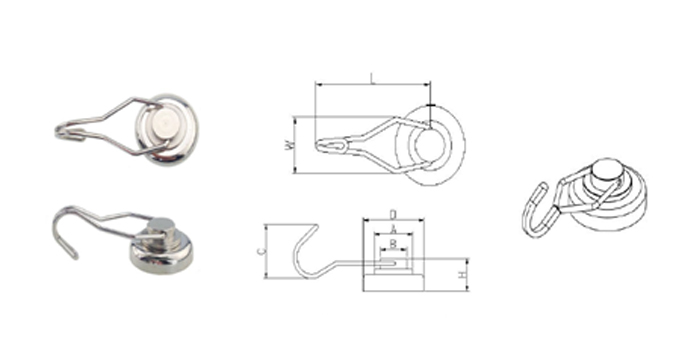

Item D A B C H L W Vertical Pull Force Side Pull Force Weight Inch MM Inch MM Inch MM Inch MM Inch MM Inch MM Inch MM KG Lbs KG Lbs G SNG25 0.984 25 0.787 20 0.531 13.5 0.945 24 0.610 15.5 2.165 55 0.906 23 17 37 3.5 8 38 SNG32 1.260 32 0.787 20 0.531 13.5 0.945 24 0.610 15.5 2.165 55 0.906 23 30 66 5.5 12 52 SNG36 1.417 36 0.787 20 0.531 13.5 0.945 24 0.594 15.1 2.165 55 0.906 23 40 88 6.5 14 65 SNG40 1.575 40 0.787 20 0.531 13.5 0.945 24 0.614 15.6 2.165 55 0.906 23 50 110 7 15 84 SNG42 1.654 42 0.787 20 0.531 13.5 0.945 24 0.650 16.5 2.165 55 0.906 23 60 132 8 18 92 -

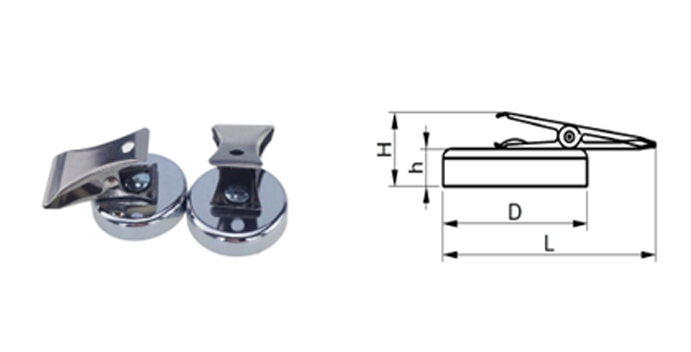

Item D L H h Pull force Weight Inch MM Inch MM Inch MM Inch MM KG Lbs G SFK36 1.417 36 1.988 50.5 0.913 23.2 0.291 7.4 6.8 15 45
