| MAGNETIC AND PHYSICAL PROPERTIES OF CAST ALNICO MAGNET | |||||||||||||
| Material Grade | Equivalent MMPA Class |
Br | Hc | (BH)max | Density | Temperature Coefficient |
Curie | Maximum Working Temperature Tw |
Remark | ||||
| Temperature Tc | |||||||||||||
| mT | Gs | KA/m | Oe | KJ/m3 | MGOe | g/cm3 | Near Br %/K | Near Hcj %/K | ℃ | ℃ | |||
| LN10 | ALNICO3 | 600 | 6000 | 40 | 500 | 10 | 1.2 | 6.9 | -0.03 | -0.02 | 810 | 450 | Isotropy |
| LNG13 | ALNICO2 | 700 | 7000 | 48 | 600 | 12.8 | 1.6 | 7.2 | -0.03 | -0.02 | 810 | 450 | |
| LNGT18 | ALNICO8 | 580 | 5800 | 100 | 1250 | 18 | 2.2 | 7.3 | -0.025 | 十0.02 | 860 | 550 | |
| LNG37 | ALNICO5 | 1200 | 12000 | 48 | 600 | 37 | 4.65 | 7.3 | -0.02 | 十0.02 | 850 | 525 | Anisotropy |
| LNG40 | 1250 | 12500 | 48 | 600 | 40 | 5 | 7.3 | ||||||
| LNG44 | 1250 | 12500 | 52 | 650 | 44 | 5.5 | 7.3 | ||||||
| LNGT38 | ALNICO8 | 800 | 8000 | 110 | 1380 | 38 | 4.75 | 7.3 | -0.025 | 十0.02 | 860 | 550 | |
| LNGT40 | 820 | 8200 | 110 | 1380 | 40 | 5 | 7.3 | -0.025 | 十0.02 | 860 | 550 | ||
06 Product Performance
04 We have provided below Rod shape Guitar Pickup magnet before
1. Grade: AlNiCo2, AlNiCo3, AlNiCo4, AlNiCo5, AlNiCo8
2. Chamfer: R0.2, R0.5, R0.8
3. Size:
05 We have provided below Rod shape Guitar Pickup magnet before
1.Grade: AlNiCo2, AlNiCo3, AlNiCo4, AlNiCo5, AlNiCo8
2.Surface: Polished, Rough
3. Size:

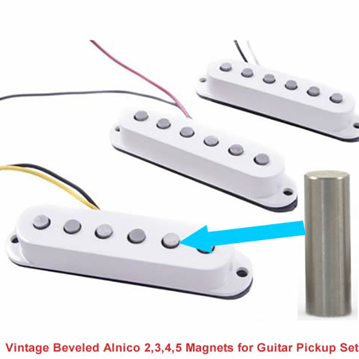

02 What is Guitar Pickup Magnet?
Electric guitar use Alnico or Ferrite magnet in pickup. The common magnets' shapes are cylinder and block. There are many kinds of sizes are applied to pickup.
The common Alnico grade is Alnico2, Alnico3, Alnico4, Alnico5, Alnico8. For Ferrite magnet, C5/C8 is the most common grade. Acoustic guitar pickup use Neodymium magnet.
